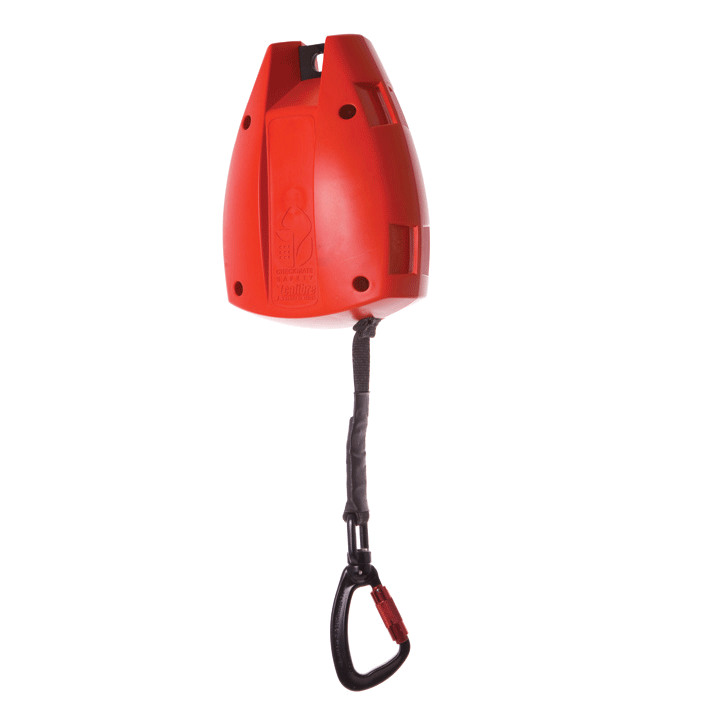

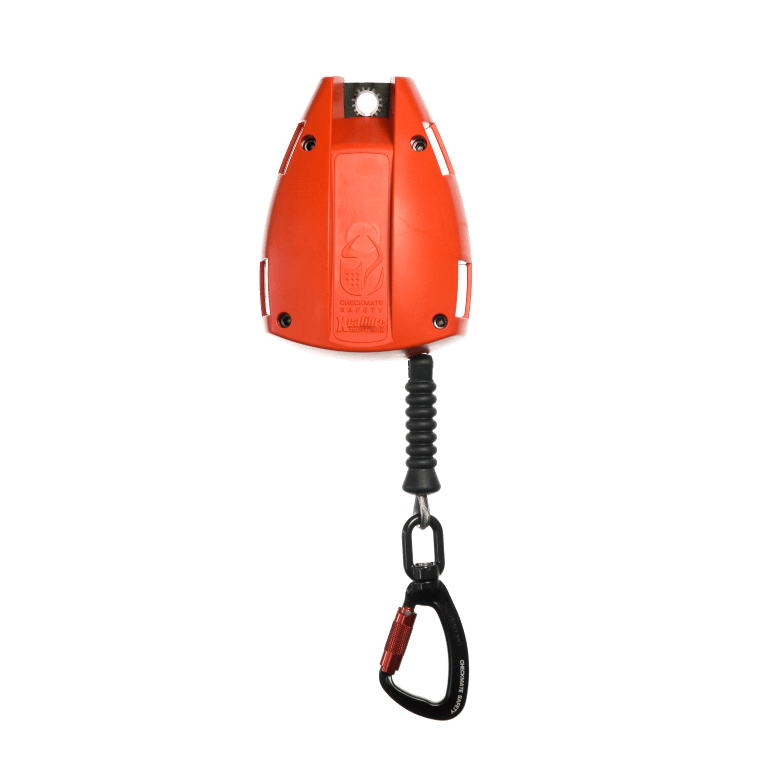

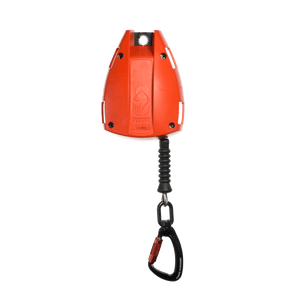

Checkmate 10m (33ft) Xcalibre With Galvanised Rope - FABX1-10C
The FABX1 is available with galvanised or stainless steel cable, fibre rope made with Dyneema® fibre rope or webbing made with Dyneema®. Up to 10 metres (33ft) in length the FABX1 offers lightweight handling, excellent serviceability and exceptional performance.
FEATURES
- Top Connector11mm alloy twist lock karabiner approved to EN362 & rated to 25kN (EN ONLY)
- Galvanised steel Wire Rope4.50mm dia. 19 x 7minimum breaking load 15kN
- Stainless Steel Wire Rope5mm dia. 7 x 19 minimum breaking load 15kN
- Webbing made with Dyneema®; 20mm x 1.4mm min. breaking load 22kN
- Fibre Rope Rope made with Dyneema®; 5mm dia. Min. breaking load 27kN
- Capacity Wire and Rope made with Dyneema®: 10m.(33ft)
- Webbing: 8m (26ft)
- Maximum Arresting force Wire rope =4.4kN(nom)
- Webbing = 3.3kN(nom)
- Made with Dyneema® = 4.2kN(nom)
- Total Arrest distance Max 2.0m (EN) / 54” (ANSI)
- User Weight136kg maximum (300lbs)
STANDARDS
- EN 360
- AS/NZS 1891.3.1997 (EN)
- ANSI Z359.14:2012 Class B
- OSHA 1910 &1926
DYNEEMA®
- Dyneema® and Dyneema®, the world’s strongest fiber™ are trademarks of DSM. Use of these trademarks is prohibited unless strictly authorized.
CONSTRUCTION
- External Housings PC/ABS High strength and rigidity UV stabilised
- Drum Polyamide 6 Glass Filled
- Chassis Hot Rolled Steel, Zinc plated black
- Pawl Plate & Ratchet Al Alloy T6 Hard anodised
- Pawls & Spindles Stainless steel, hardened
- Bearings Polyamide with PTFE Polytetrafluoroethene
- Shaft Al. Alloy T6 Hard anodised
- All Fixings Stainless steel
- Swivel Hook Al. Alloy, Rated to 25kN (EN)
- Steel, Rated to 40kN (ANSI)
