CX Hinged Vertical Plate Clamps Heavy Duty Side Loading

  • £427.13
    Unit price per
Tax included. Shipping calculated at checkout.

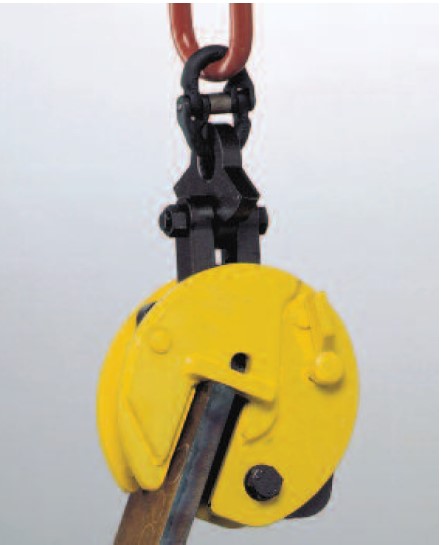

CX Hinged Vertical Plate Clamps Heavy Duty Side Loading

The CX plate clamps shares all the benefits of the CY clamps, but are
specifically designed for more heavy duty applications.


The other benefit that the CX clamps offers over the CY clamps is that vertically

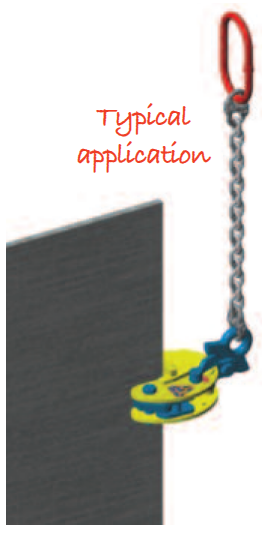

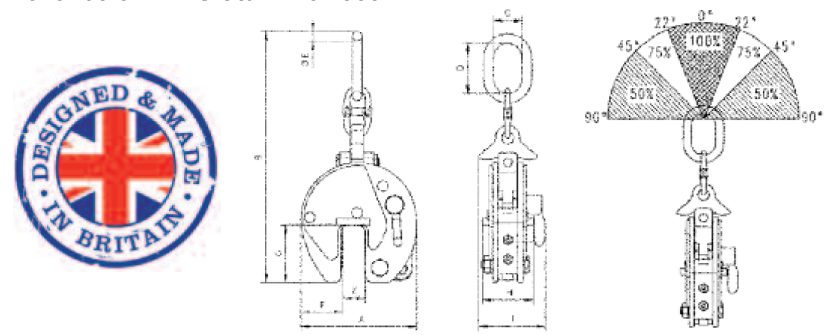

racked plates can be turned through 900 (as shown in illustration).

NB: The plate surface of the material being clamped must have a hardness
level below HRC 30/Brinell 300.
