Vertical Plate Clamps - Camlok 92 Series

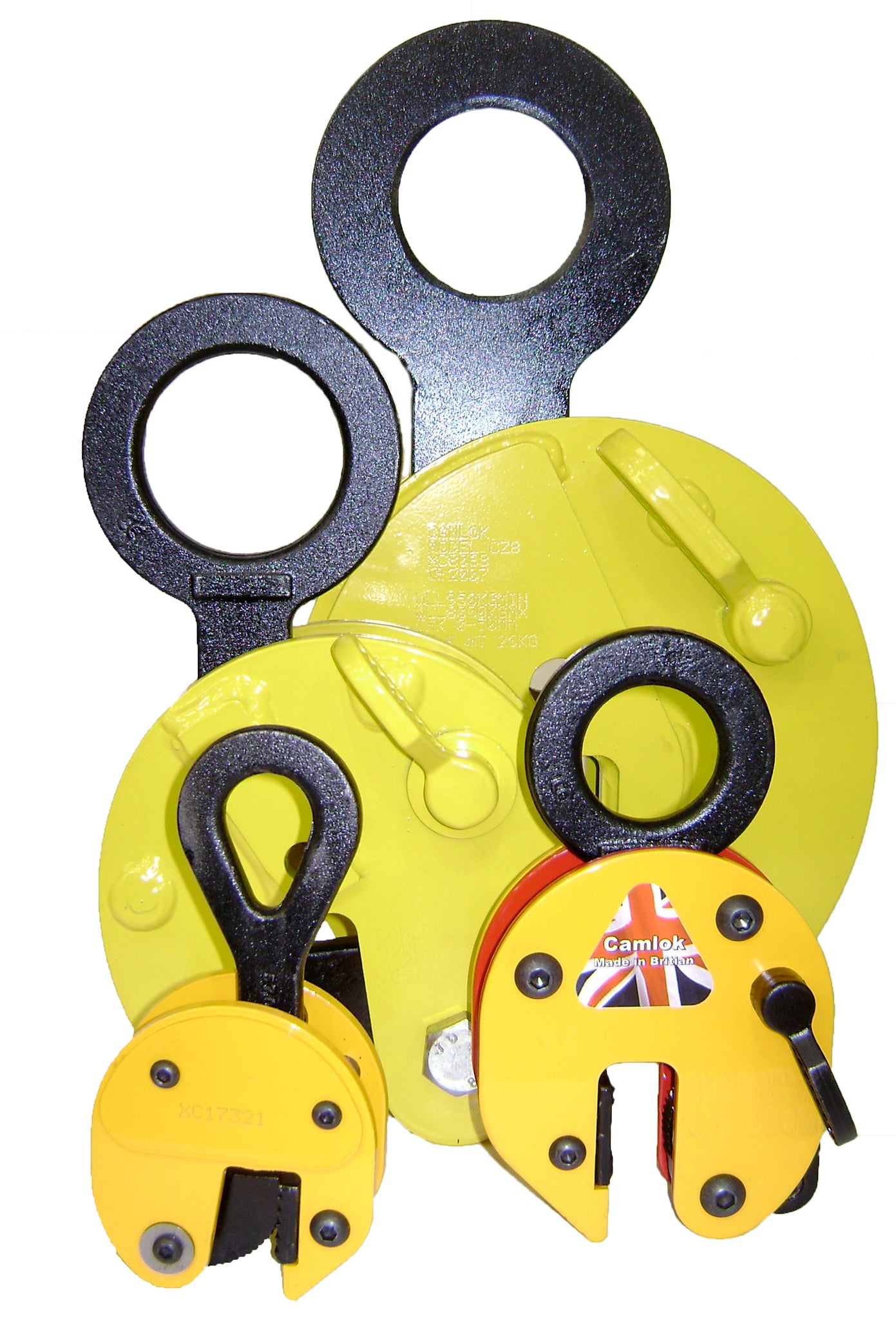

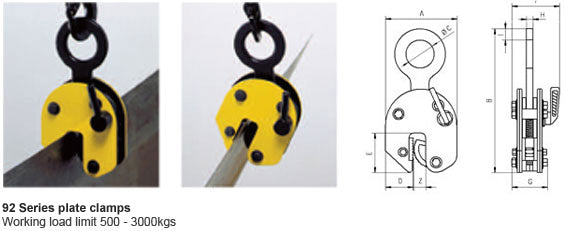

CAMLOK 92 SERIES Vertical Plate Clamps
Working load limit (WLL) 500 – 3000kg
These Clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating though 180º
They can also be used for transporting steel constructions and profiles
It is recommended to use a pair of Plate Clamps in conjunction with a spreader beam for long materials which had a tendency to sag or flex
The Jaw is opened and close with the locking lever except for the 92-500 which uses a positive spring-loaded cam
The safety lock spring loads the cam jaw, preventing the Clamp from opening even when there is no load on the jaw
Fully tested and certified
MADE IN THE UK

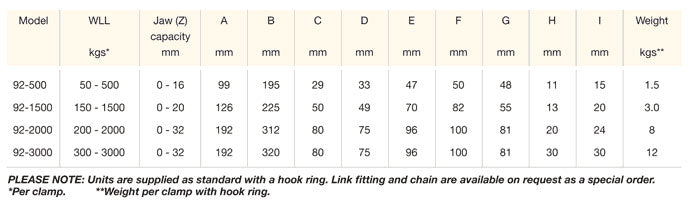

PLEASE NOTE: Units are supplied as standard with a hook ring. Link fitting and chain are available on request as a special order.
*Per clamp. **Weight per clamp with hook ring.
