Yale 400v VTE-U Electric Travel Trolleys WITH Controls

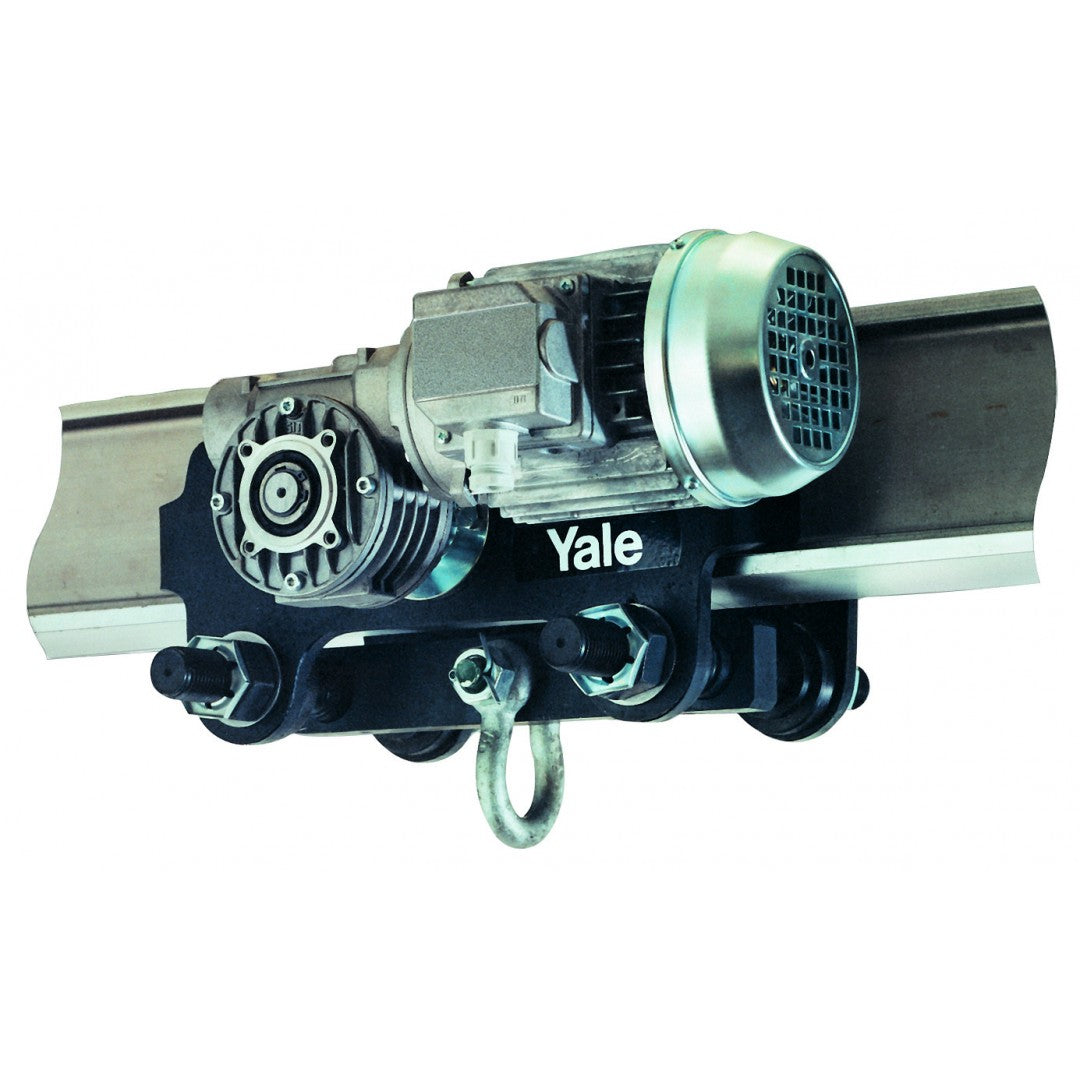

Electrical Travel Trolley VTE-U
Capacities: 1000KG - 5000KG
Specially recommended for loads over 1000kgs, for transporting over long distances, and/or for frequent use. Suitable for almost all hoists with suspension hook, due to Yale's universal shackle connection.
Travel motor with worm gear transmission ensures smooth start and self-braking - a separate motor brake is not required.
- Low voltage control 42v
- Standard operating voltage 400v 3ph 50Hz. (110v and 230v 1ph 50Hz trolleys are also available).
- Motors protected to IP55 against dust and water jets. Push-button pendant control IP65.
- Compact, robust frame with low overall height.
- Wheels manufactured from fracture-proof steel. Smooth running due to machined surfaces and ball bearing mounting. Cambered wheel profile suitable for flat and inclined beam profiles.
- Anti-drop and anti-tilt devices as standard.
- Easily adjustable to fit a wide range of beam widths and profiles via due to threaded load bars.
- Rubber buffers available as an optional extra.
- Travel limit switches also available.
NOTE: These trolleys are not designed for passenger elevation applications and must not be used for this purpose.
