Steerman / Yale Columbus Mckinnon Corporation

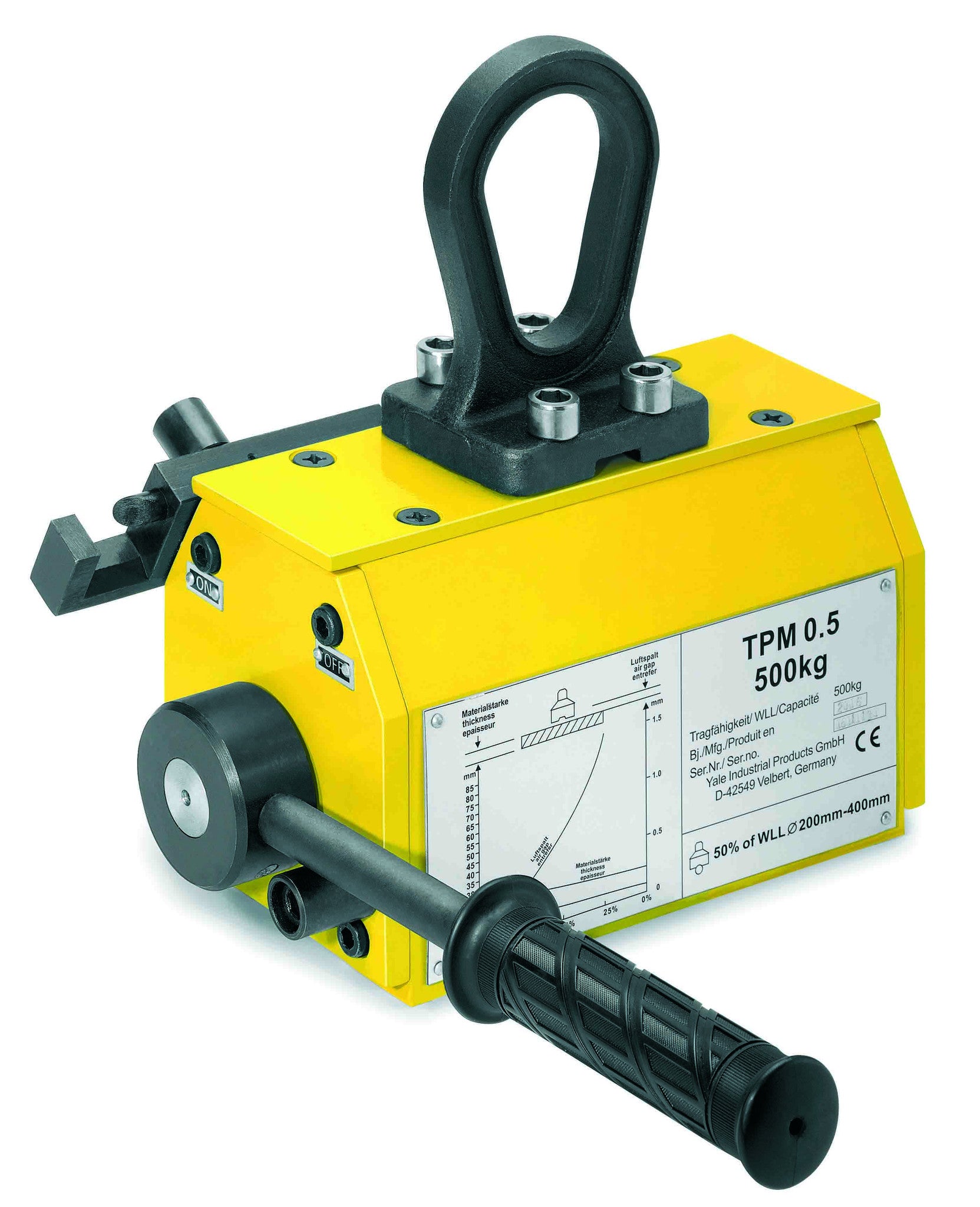

Yale TPM Permanent Lifting Magnet - 100KG - 1000KG

£190.80 £190.80

TPM load lifting magnets are ideal tools for easy, quick and thus economical transport of heavy objects made of ferro-magnetic material. Typical operating areas are workshops and warehouses, loading and unloading of machines as well as construction of jigs and fixtures. The compact design of the units allow for a wide range of applications.

Loads are not affected mechanically which allows lifting of flat as well as round material. The efficient magnet body provides high lifting capacities at low dead weight. The permanent magnets do not require electrical supply and will leave only minor residual magnetism on the material after use.

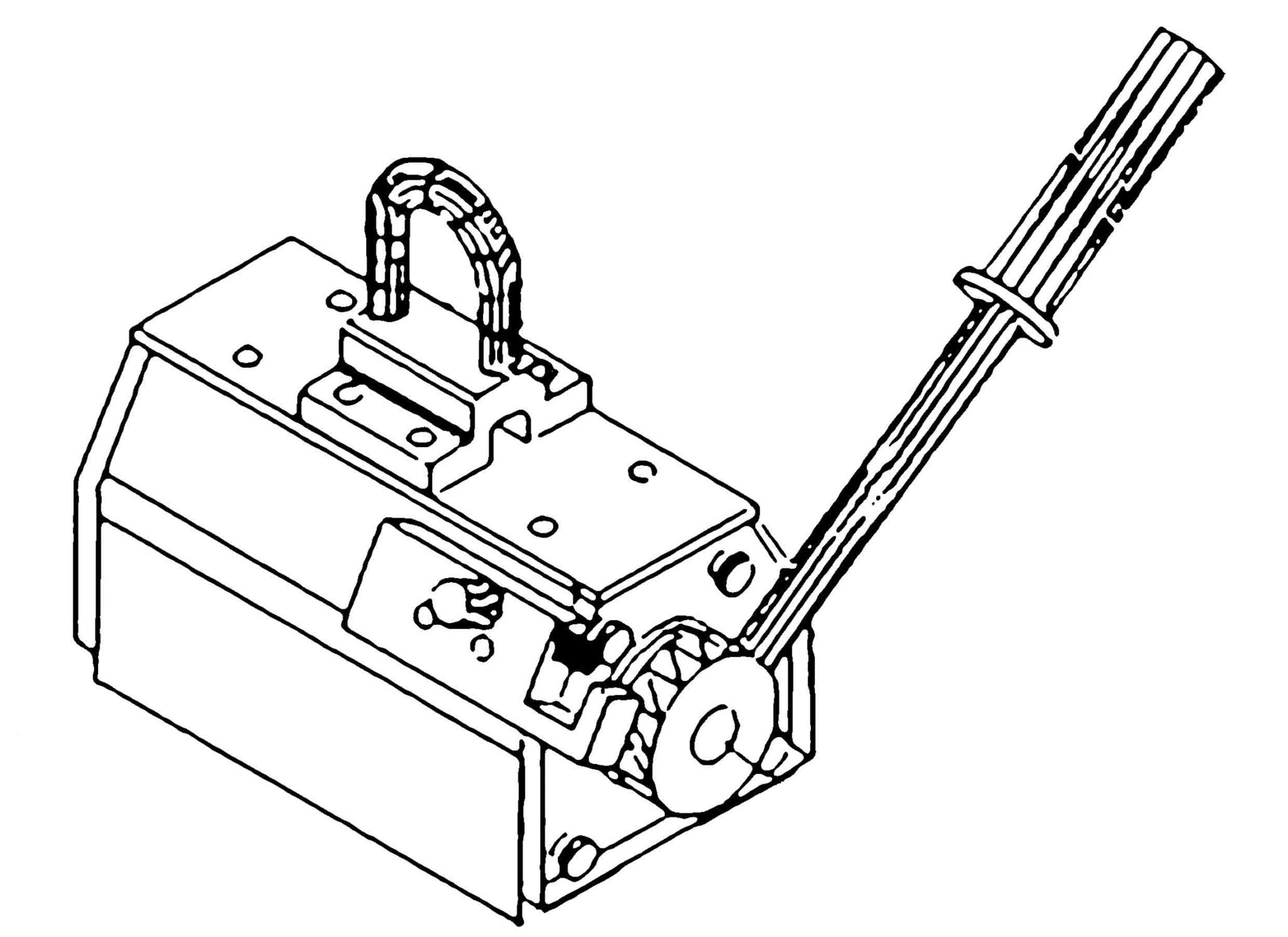

The magnets are activated / deactivated simply by turning a locking lever. In activated condition the hand lever will be safely locked and thus prevent unintended disengagement.

The selection of the appropriate magnet model should be made under careful consideration of the varying conditions of the contact surface, kind of material alloy and plate thickness / bar diameter



Model
Flat material Round material

Tear off force

kg


Dimensions


Weight



kg
Maximum capacity WLL

kg**
Minimum thickness to obtain max. WLL mm** Maximum length
of material mm
Maximum capacity WLL

kg**
Diameter



mm
Maximum length
of material mm

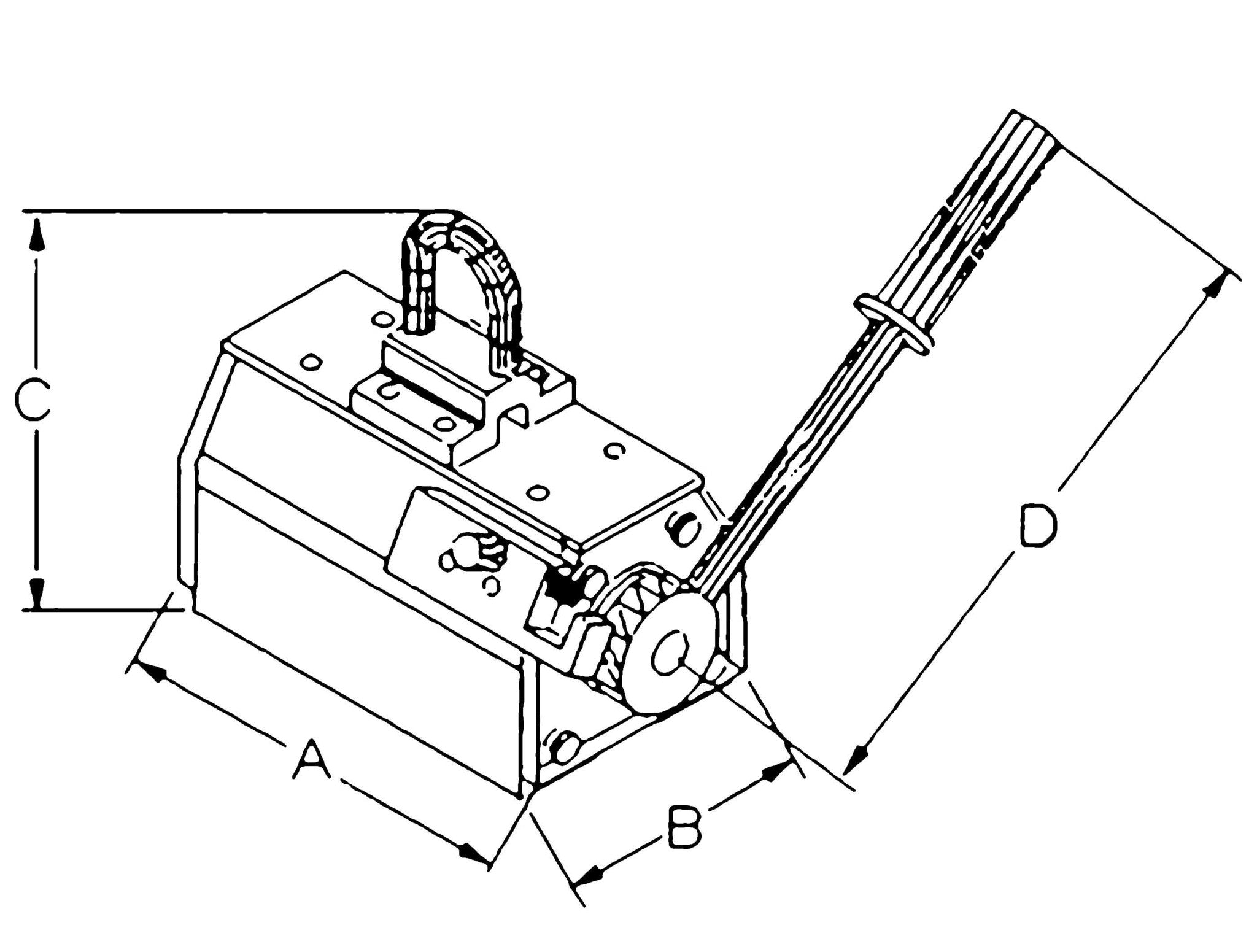

A

mm

B

mm

C

mm

D

mm

TPM 0.1
TPM 0.3
TPM 0.5
TPM 0.8
TPM 1.0

100
300
500
800
1000

15
19
25
35
40

2000
2500
3000
3500
3500

50
150
250
400
500

200-300
200-300
200-300
200-300
200-300

2000
2500
3000
3500
3500

300
900
1500
2400
3000

122
192
232
302
332

69
95
120
154
154

185
225
270
320
320

160
250
250
450
450

6
15.5
29.5
53
60
