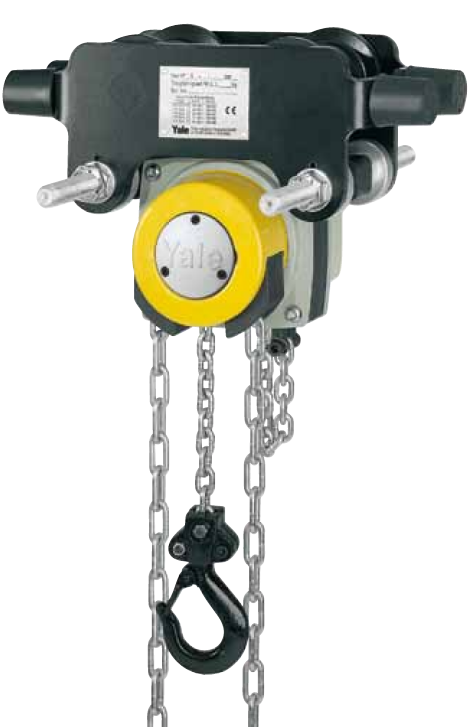

Yalelift 360 MK3 Low Headroom Trolley Hoist

Tax included. Shipping calculated at checkout.

Quantity

Capacity 500 – 20000 kg

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

Features

All units of this series up to a capacity of 3000 kg are provided with single chain fall and the min. headroom (Dim. A) has been further reduced. Ideal for applications with low ceilings and limited headroom.
The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
Trolleys up to 5 t are offered for two beam ranges. Range A for a flange width up to 180 mm is standard and covers approx. 80 % of all applications. Conversion to range B for beam width up to 300 mm can be easily accomplished.
The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 – part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
Anti-drop and anti-tilt devices as standard.
